Fabric inspection machines
BAUCH fabric inspection machines are technically and functionally tailored to your production. Owing to our in-house development and construction, we are able to equip your BAUCH fabric inspection machine individually for your production requirements.
Our machines are successfully deployed with upmarket roll-ware products that are mainly used in technical fields.
Your advantage:
All fabric inspection machines are tailored to your needs.
Intuitive machine operation guarantees user-friendly handling of our devices. Infinitely variable speed control, fully electronic web measuring systems, web end recognition and a self-diagnosis function are part of the basic equipment of our fabric inspection machines.
Operator-friendly:
Menu-guided user interface, quick and simple troubleshooting by means of self-diagnosis and web end recognition.
*** Click here to go straight to our fabric inspections machines with calibration certificate***
Fabric inspection machine:
CB-300/40 AE-
Fabric inspection machine CB-300/40 AE
- Mounted drivetrain for usage with big batching devices with automatic diameter measurement
- Automatic switch-off at web end
- Automated error recording and positioning of errors on the inspection area
- Electronic measurement system
- Inspection area with dimmable shining-through LED light, top light and lateral LED illumination
- Operating station for fabric inspection with moveable operator’s chair and integrated machine activation
- Web edge guide control with traverse function
- Anti-static device
- Ascending batch winding system with tandem drive and side boundaries with quick adjustment
- Electronic ejection system
- Automatic cross-cutting device
- Winding up of excess length with packaging device
Fabric inspection machine:
CB-WVS 360
Sectional LED-Illumination
infinitely variable inspection area
-
Fabric inspection machine CB-WVS
- Fabric is pulled off a freely revolving roll or off a stack by means of an integrated pulling mechanism
- Material storage for rewind mode
- Automatic switch-off at web end
- Electronic measurement system
- Inspection case with electric angle adjustment
- Dimmable bottom LED light, switchable by section
- Top light
- Web edge guide control with traverse function
- Ascending batch winding system with tandem drive
- Side boundaries with quick adjustment
- Cutting bar for manual cutting process
- Mechanical winding up of excess length with packaging station
- Computer mounting for customer’s EDP integrated
Fabric inspection machine:

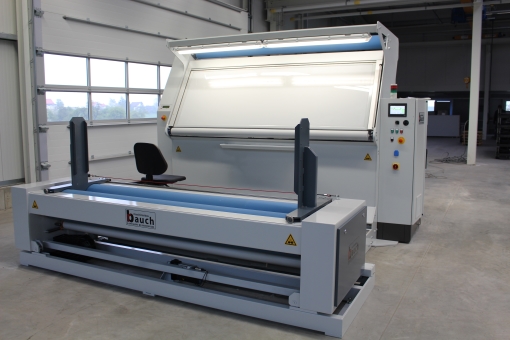

CB-WDS-
Fabric inspection machine CB-WDS
- Driven centre unwinding station with automatic diameter measurement
- Take-in of cloth beams via self-closing safety foldaway bearings
- Compressed-air withdrawal point for the use of expansion shaft axles
- Automatic switch-off at web end
- Electronic measurement system
- Inspection area Dimmable bottom LED light, switchable by section

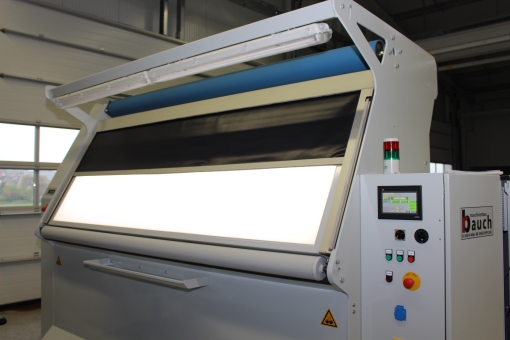

- Inspection section equipped with additional cover shutter
- Movable operating chair with integrated machine control
- Web edge guide control with integrated traverse function
- Ascending batch winding system with tandem drive
- Side boundaries with quick adjustment and integrated fall-down protection
Fabric inspection machine:

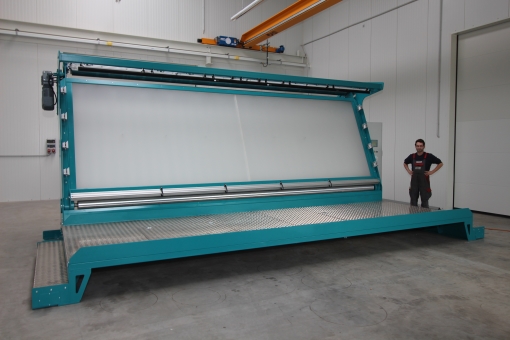

XXL-Inline-
XXL-Inline Fabric inspection
- for integration into existing machine line up to an operating width of 5,400 mm
- Web inlet adapted to the customer’s on-site conditions
- Inspection area with electronic angle adjustment
- Dimmable shining-through LED light, switchable by section
- Dimmable LED top light system with integrated black-light facility
- Lateral LED illumination with angle adjustment
- Visual width division with vernier adjustment
- Walkway with fabric guide adapted to the customer’s on-site conditions, as well as integrated access hatches
Warenschaumaschine:
Reroll table-
Reroll table CB-UR
- Driven centre unwinding station with automatic diameter measurement
- Take-in of cloth beams via self-closing safety foldaway bearings
- Compressed-air withdrawal point for the use of expansion shaft axles
- Automatic web intake regulation
- Inspection area with aluminium layer
- Dimmable top light
- Printer for fabric printing
- Ascending batch winding
- Side boundaries
- Traverse system
- Mechanical ejector
- Winding up of excess length with packaging device
Fabric inspection machine:
CB-WU 380-
Fabric inspection machine CB-WU
- Winding and unwinding on big batching devices via mounted drivetrains with automated diameter measurement
- Automatic execution of preset winding curves (progressive/degressive)
- Recipe management
- Pneumatically controlled pressure roll for winding system
- Electro-pneumatic disc brake mechanism for winding system with automated diameter sensing
- Electronic measurement system
- Inspection area with LED shining-through and top light
- Moveable operator spot for fabric inspection with integrated machine activation
Fabric inspection machine:
WBK-360-MA-
Fabric inspection machine WBK-360-MA
- Winding and unwinding over ascending batch winder with tandem drive
- J-box with downstream web centring
- Illuminated multi-section inspection area with dimmable shining-through LED light
- Electronic measurement system
- Twofold vacuum brush device for fabric cleaning
- Web edge guide control with integrated traverse function
- Removable side boundaries with quick adjustment
Your advantage:
Each fabric inspection machine is unique: we adapt it to, and equip it for, your specific requirements.
Fabric inspection machine:
AWA-320-
Fabric inspection machine AWA-320
- Driven centre unwinding station with automatic diameter measurement
- Take-in of cloth beams via self-closing safety foldaway bearings
- Compressed-air withdrawal point for the use of expansion shaft axles
- Fabric cleaning system with integrated suction system
- Electronic measurement system with manufacturing function
- Multi-section inspection area with top light
- Web edge guide control with integrated traverse function
- Ascending batch winding system with tandem drive and removable side boundaries
Fabric inspection machine:

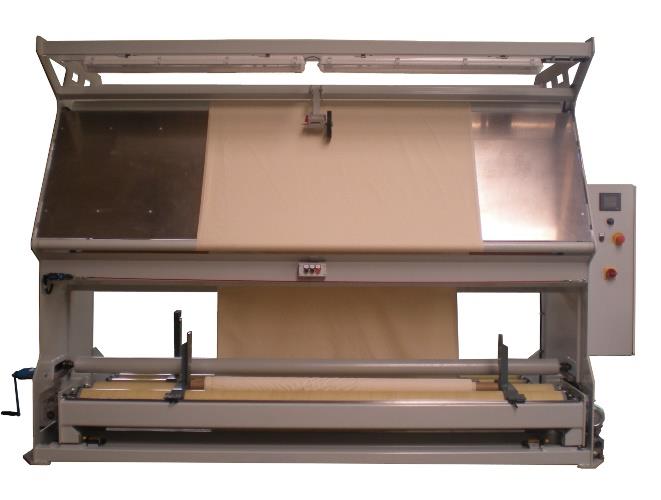

CB-WMH 260-
Fabric inspection machine CB-WMH
- Winding and unwinding over ascending batch winders with tandem drive
- Auxiliary pulling-off device with restraining device for freely rotating fabric pull-off
- Automatic switch-off at web end
- Mechanical measurement system
- Inspection area with aluminium layer
- Dimmable top light
- Web edge guide control
- Side boundaries with quick adjustment
- Mechanical ejection system for ready batches
- Auxiliary unwinding device
Fabric inspection machine:
CB-WAT 320-
Fabric inspection machine CB-WAT 320
- Pulling off of roll or stack
- Inspection area with dimmable shining-through LED light
- Lockable counter-rotation roll at fabric intake system
- Infinitely variable plaiting length
- Integrated catch tub for plaited inspected fabric
- Chassis for in-house change of site
Fabric inspection machine:
UW-220-
Fabric inspection machine UW-220
- Winding and unwinding over ascending batch winders
- Side boundaries with quick adjustment
- Web edge guide control
- Swibelable expanding system
- Inspection area made of aluminium
- Movable operating chair
- Automatic limit switch
Fabric inspection machine:
WSF-400-
Addition for existing fabric inspection machines WSF-400-LE
- Material inlet adapted to the customer’s on-site conditions
- Pneumatic material storage with integrated level monitoring
- Separately powered spreader roller
- Electronic measurement system
- Web edge guide control with traverse function
- Ascending batch winding system with tandem drive
- Removable side boundaries with quick adjustment
Rewinder Type RUBA
Unwinder
-
Optimisation of fabric inspection
Rewinder (e.g.: Typ RUBA):- Materialeinlauf angepasst auf kundenseitige Gegebenheiten vor Ort
- Material inlet adapted to the customer’s on-site conditions
- Fully electronic web traction measurement
- Automatic execution of preset winding curves (progressive/degressive)Recipe management
- Material clamping for pinpoint application
- Take-in of cloth beams via self-closing safety foldaway bearings
- Compressed-air withdrawal point for the use of expansion shaft axles
- Automated diameter measurement
- Steplessly variable pressure
- Fully automated stop when desired length is achieved
- Pneumatically controlled V-block with servomotor drive unit
- Electronically secured swivelable housing
Unwinder:- angetriebene Zentrumsabwickelstation mit automatischer ø-Erfassung
- Driven centre unwinding station with automatic diameter measurement
- Fully electronic web traction measurement
- Take-in of cloth beams via self-closing safety foldaway bearings
- Compressed-air withdrawal point for the use of expansion shaft axles
- Width adjustment by means of profile rail system for usage of various fabric batch lengths
*** Informationen zu unserem Projekt "Modulare Warenschauanlage" finden Sie unter der Rubrik Innovationen ***
